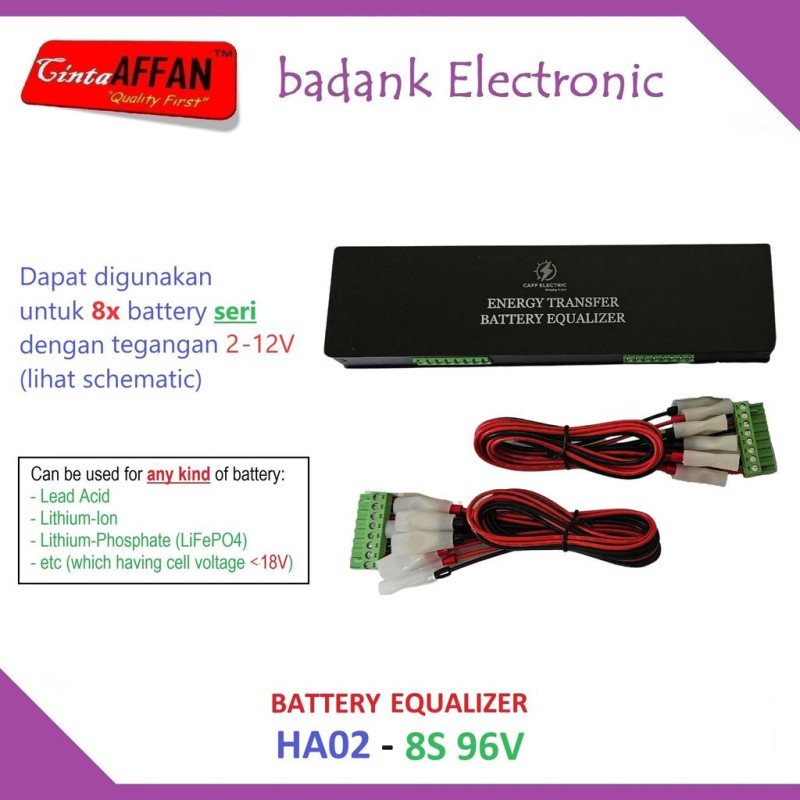

HA02-8S 96V Battery Equalizer Accu Balancer Penyeimbang Tegangan Aki

##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################

DAPAT DIGUNAKAN UNTUK SEMUA JENIS BATTERY
(dengan cell-voltage dibawah 18V)

HA02-8S 96V

Battery Equalizer for 8 X (2-12V) battery

INSTALLATION
Connect it as the following order:
1. Red cable connect positive (+) pole. Black cable connect negative (-) pole
2. Connect the batteries as the pictures.
3. You can connect all (+) pole firstly, and then (-) pole to avoid short circuits.
4. AVOID SHORT-CIRCUIT, it can broke the balancer.

MAIN FEATURES:
--For 8*2-12V Batteries
--Battery protector, extend battery lifetime
--Active energy transfer equalizer
--Compatible with all batteries, No battery type limited
--Fast balance speed and low consumption
--No need of external power supply
--Free maintenance;
--Reverse polarity protection, safe and reliable.
--IP67, waterproof and moisture-proof;
--Separate terminals, easy installation.
--CE, RoHS certification

TECHNICAL DATA:
Battery nominal voltage : 8*(2-12V)
Battery max voltage : 18V on each cell
Optimizing current : 0-10A (balance current is based one batteries voltage difference)
Balance status : keep on working in charging/discharging/free status when there is 10mv voltage difference
Dimensions : 248*66*23 mm
Protection :
Reverse polarity protection
Low Voltage Disconnect : 1.8V
