AC 3-PHASE 4-WIRE Protection Relay Unbalance Over Under VOLTAGE

Name: AC 3-PHASE 4-WIRE Protection Relay Unbalance Over Under VOLTAGE
Brand: badank Electronic
SKU: 6116620616
Price: 533500 IDR
Availability: InStock

Rp550.000

Rp533.500 Hemat 3%

Termasuk pajak

Kebijakan Keamanan

Kami melindungi informasi pribadi Anda dengan langkah keamanan yang tepat untuk mencegah akses tanpa izin, penyalahgunaan, atau pengungkapan.

Kebijakan Pengiriman

Pesanan diproses dan dikirim secepat mungkin. Waktu pengiriman dapat berbeda tergantung tujuan, kurir, dan ketersediaan produk.

Kebijakan Pengembalian

Jika Anda menerima barang rusak, cacat, atau tidak sesuai, silakan hubungi kami segera. Pengembalian atau penukaran mengikuti ketentuan dan batas waktu yang berlaku.

Keterangan
Detail produk

##################################
READY STOCK, SILAHKAN LANGSUNG ORDER
##################################

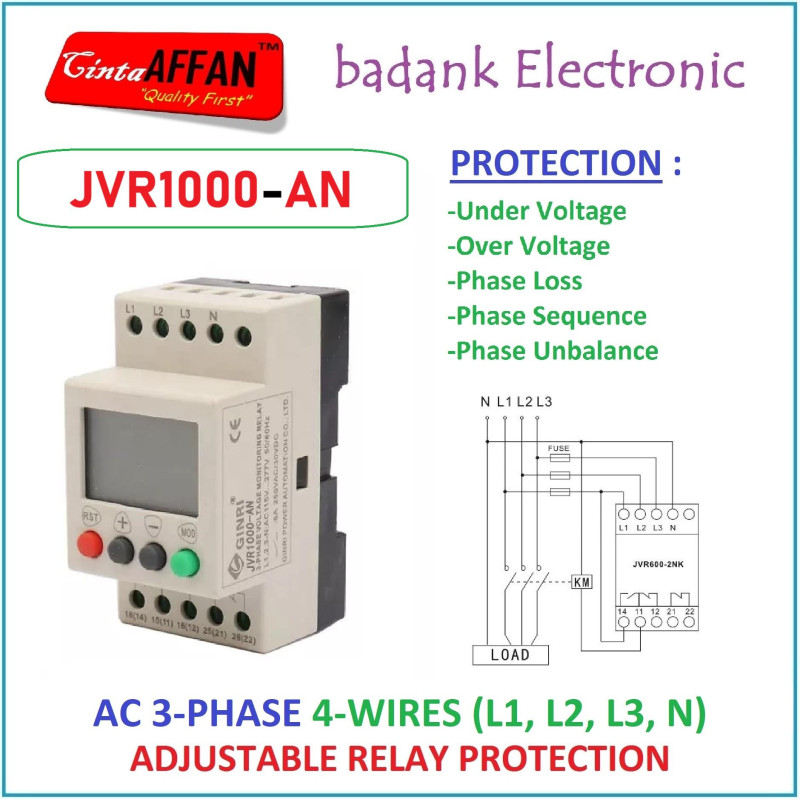

GINRI LCD 3-PHASE 4-WIRE (L1, L2, L3, N) Adjustable Over Under Voltage Phase Unbalance Sequence Relay Protection Device DIN Rail

Model : JVR1000-AN

NOTE : Produk ini perlu dikombinasikan dengan CONTACTOR 3-Phase 3-Pole/4-Pole, sebagaimana schematic pada gambar

FEATURES
--- Compact modular 43mm housing
--- World-wide power specifications supported by one Unit
--- Greater resistance to inverter noise
--- 3-phase 4-wire voltage input
--- Microprocessor technology provides highly accurate and repeatable protection
--- Built-in LCD and keypad afford a pre cise digital setting
--- Adjustable over- and undervoltage, phase unbalance threshold
--- Independent adjustable delay time for overvoltage, undervoltage, voltage unbalance, phase loss and phase sequence
--- Neutral loss monitoring
--- Adjustable reset method: automatic reset or manual reset
--- Start delay(power-on delay)
--- Test trip with test button
--- 1 NO & 1 NC contacts
--- Fault recording with last 3 faults

PROTECTIVE FUNCTIONS
--- Phase Loss (Failure)
--- Phase Sequence (Reversal)
--- Voltage Unbalance (Asymmetry)
--- Undervoltage
--- Overvoltage
--- Neutral loss

TYPICAL APPLICATIONS
Pumps Fans
BlowersMotors
Compressors other 3-phase equipment

TECHNICAL DATA
-- Indicators : LCD indicating voltage, operation and fault status
-- Output contacts : 1 NO & 1NC
-- Contact capacity : 6A ,250VAC
-- Dimensions (H x W x D) : 80x43x54mm
-- Mounting : DIN rail
