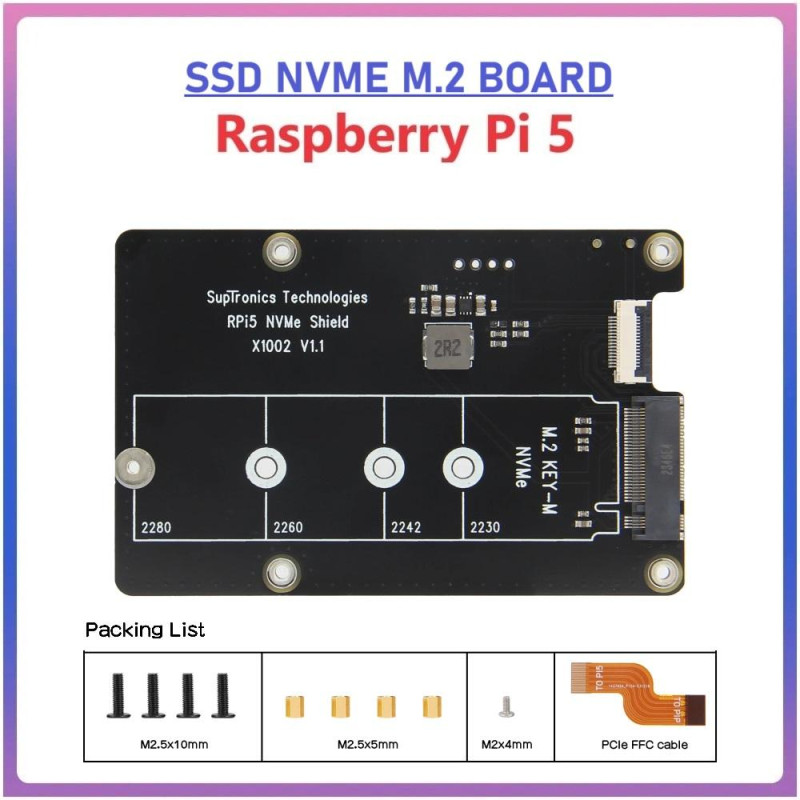

SSD NVME M.2 BASE BOARD SHIELD for Raspberry Pi 5

##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################

SSD NVME M.2 BOARD / SHIELD / HAT for Raspberry Pi 5
BOTTOM SHIELD

Compatible for :
-- NVME M.2 2230
-- NVME M.2 2242
-- NVME M.2 2260
-- NVME M.2 2280

HOW TO POWER :
Can power the X1002 shield directly from the FFC PCIe ribbon (providing maximum 5W of continuous power)

---

OVERVIEW :
The X1002 V1.0 shield is a bottom NVMe M2 2280 SSD PIP (PCIe Peripheral Board) for the Raspberry Pi 5 that uses the new PCIE interface of the Raspberry Pi 5 to utilize the NVME M2 SSDs for fast data transfers and ultra-fast booting.

FEATURES
--Full compatible with other HAT shield;
--Customized FPC cable for easy use of TF card;
--Supports installation of official active coolers also;
--With ACT LED Indicator;
--Supports 2230/2242/2260/2280 NVMe M2 SSD(Do not reserve the nut column to fix the 2230/2242/2260 SSD, users need to find proper way to fix the 2230/2242/2260 SSD).
--Can power the X1002 shield directly from the FFC PCIe ribbon (providing maximum 5W of continuous power)

PACKING LIST
1 x X1002 NVMe SSD Shield bottom
1 x PCIe FPC Cable
4 x M2.5x5mm F/F Spacers
4 x M2.5x10mm Screws
1 x M2x4mm Screws (to fix NVMe M2 SSD)

---
