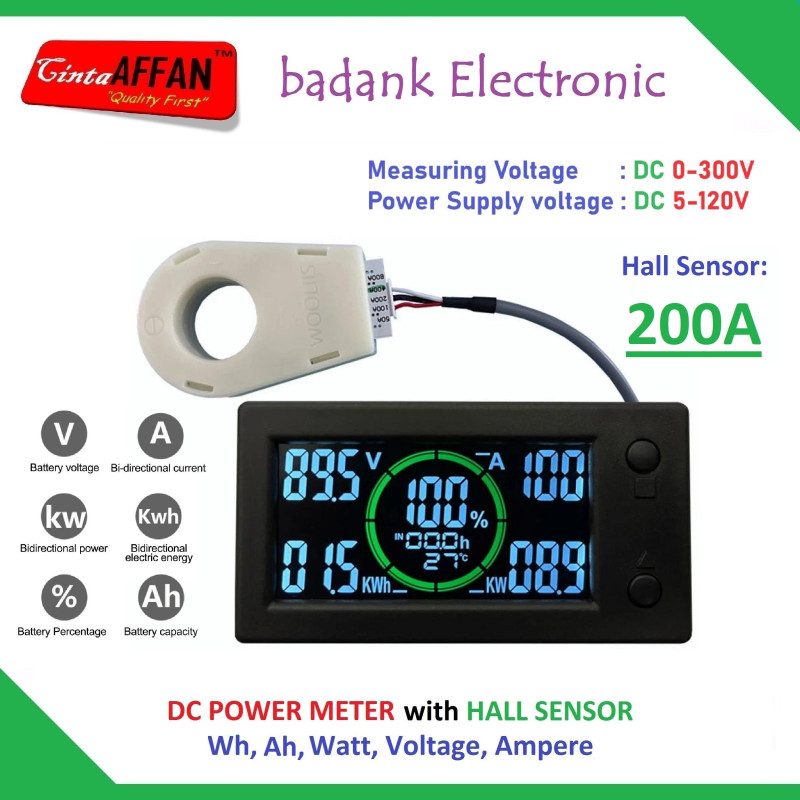

300V 200A DC Digital Power Meter Hall Sensor - Wh Ah Watt Volt Amp

##################################
READY STOCK, SILAHKAN LANGSUNG ORDER
##################################

---BI DIRECTIONAL---

Alat ukur listrik DC 300V 200A

untuk berbagai keperluan seperti Panel Surya, Mobil Listrik, DC circuits, Boat/RV & Battery Backup systems dll

dengan HALL SENSOR (sebagaimana gambar)

Dapat mengukur listrik DC:
-konsumsi/energy listrik (Wh)
-konsumsi/energy listrik (Ah)
-Watt
-Tegangan/Voltage
-Arus
-dll

Order Other Varian :
100A : https://www.tokopedia.com/badank/300v-100a-dc-digital-power-meter-hall-sensor-wh-ah-watt-volt-amp
200A : https://www.tokopedia.com/badank/300v-200a-dc-digital-power-meter-hall-sensor-wh-ah-watt-volt-amp
400A : https://www.tokopedia.com/badank/300v-400a-dc-digital-power-meter-hall-sensor-wh-ah-watt-volt-amp

---

===
FEATURES:

1. Use high-quality materials, durable
2. Low voltage alarm, high voltage alarm, overcurrent alarm, low capacity alarm
3. Full screen can display all data, more intuitive
4. Hall inductive nondestructive measurement, with ultra simple wiring
5. Easy to use

SPECIFICATIONS:

Model : WLS-MVA200
Current measurement range: 50A/100A/200A/400A (optional)
Power supply voltage range: DC5-120V
Voltage measurement voltage: DC0-300V
Voltage resolution: 0.1V
Capacity measurement range: 0~999AH (Note: 0~2000AH can be reached when only percentage is displayed)
Power measurement range: 0~999KW
Electric energy measurement range: 0~999KWH
Table Measurement error:+- 1%
Refresh speed: 0.5S to refresh the information displayed once
Temperature measurement range: - 50 ° C~125 ° C
Installation slotting size: slotting size: 76.0mm * 40.5mm (20mm in the diameter of sensor threading hole)
Working current: Backlight on: 25MA. Backlight off: 9MA (total power 0.3W, different voltages and currents)

PACKAGE LIST:

Coulometer * 1
Hall sensor * 1
Connecting wire * 1
Power cord * 1
Manual book *1

---

===
