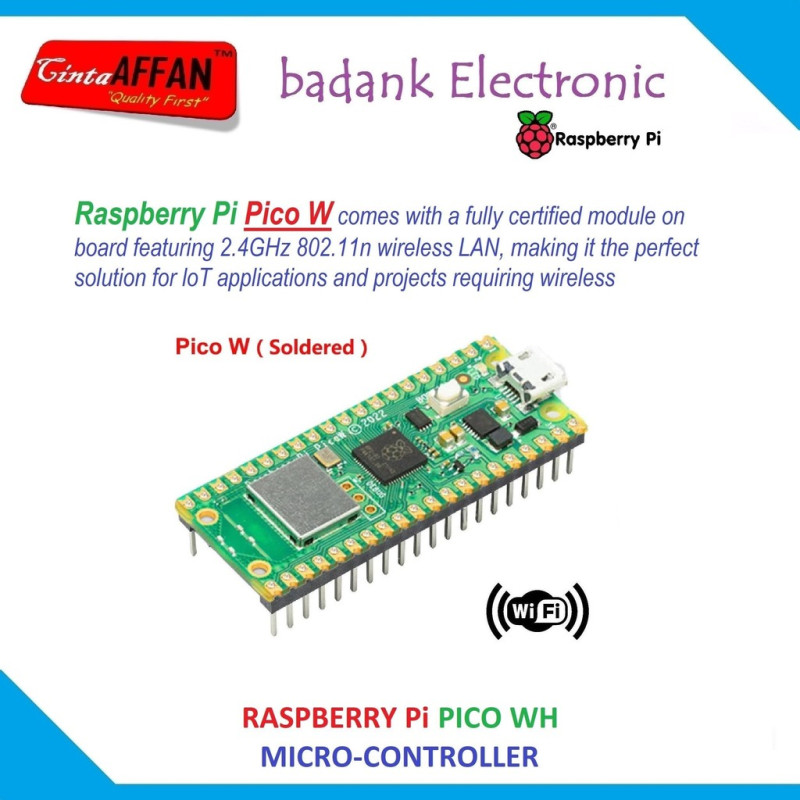

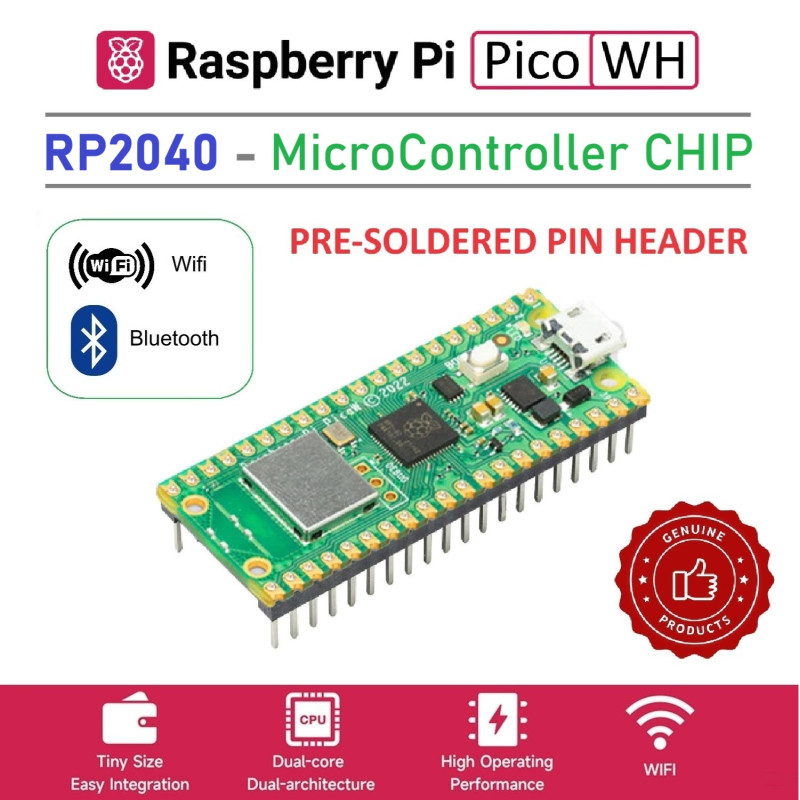

Raspberry Pi Pico W-H with RP2040 Chip Built-in WIFI Bluetooth (Soldered Pin-Header)

##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################

RASPBERRY Pi PICO W-H, RP2040 Chip
--Built in WIFI & BLUETOOTH
--DENGAN PIN HEADER TERSOLDER

HARAP DIBACA DAN DIPAHAMI SEBELUM MEMBUAT ORDER

***CATATAN PENTING:
Produk yang kami jual adalah Raspberry Pi Pico standar pabrik, dikirim dalam kondisi kosong tanpa program/firmware. Pembeli perlu melakukan pemrograman sendiri sesuai kebutuhan.

***MENGENAI LED:
LED onboard BUKAN indikator power. Saat Pico dicolokkan ke USB komputer, LED tidak otomatis menyala dan ini NORMAL.

Pico tetap dapat terdeteksi oleh komputer sebagai perangkat USB dengan nama RPI-RP2, terutama saat masuk mode BOOTSEL. LED hanya menyala atau berkedip jika dikendalikan oleh program/firmware.

LED tidak menyala saat USB dicolokkan bukan berarti board rusak.

TECHNICAL SPECIFICATIONS:
* 21 mm × 51 mm form factor
* RP2040 microcontroller chip designed by Raspberry Pi in the UK
* Dual-core Arm Cortex-M0+ processor, flexible clock running up to 133 MHz
* 264kB on-chip SRAM
* 2MB on-board QSPI flash
* 2.4GHz 802.11n wireless LAN (Raspberry Pi Pico W and WH only)
* Bluetooth 5.2 (Raspberry Pi Pico W and WH only)
* 26 multifunction GPIO pins, including 3 analogue inputs
* 2 × UART, 2 × SPI controllers, 2 × I2C controllers, 16 × PWM channels
* 1 × USB 1.1 controller and PHY, with host and device support
* 8 × Programmable I/O (PIO) state machines for custom peripheral support
* Supported input voltage 1.8–5.5V DC
* Operating temperature -20DegC to +85DegC (Raspberry Pi Pico and Pico H); -20DegC to +70DegC (Raspberry Pi Pico W and Pico WH)
* Castellated module allows soldering direct to carrier boards (Raspberry Pi Pico and Pico W only)
* Drag-and-drop programming using mass storage over USB
* Low-power sleep and dormant modes
* Accurate on-chip clock
* Temperature sensor
* Accelerated integer and floating-point libraries on-chip
