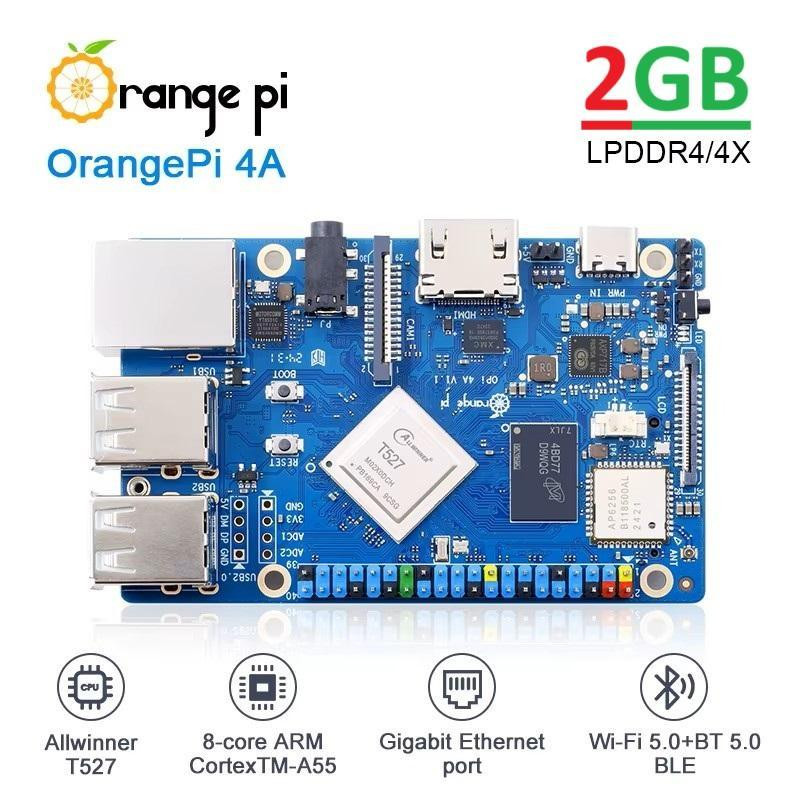

Orange Pi 4A - 2GB RAM with 8-Core CPU Embedded 2-TOPS NPU
Rp1,022,000
Rp991,340
Save 3%
Tax excluded
SKU: 5407012185
Security policy
We protect your personal information with appropriate security measures to prevent unauthorized access, misuse, or disclosure.
Delivery policy
Orders are processed and shipped as quickly as possible. Delivery times may vary depending on destination, courier service, and product availability.
Return policy
If you receive a damaged, defective, or incorrect item, please contact us promptly. Returns or exchanges are subject to the applicable terms and time limits.
##############################
READY STOCK, SILAHKAN LANGSUNG ORDER
##############################
Orange Pi 4A (2GB RAM)
Compatible for onboard (backside) installation of SSD NVME M.2 2280 Form Factor
SUPPORTED OS (Operating System) :
OFFICIAL IMAGES :
- Ubuntu
- Debian
- Android
(OS Image MUST be downloaded from Orange Pi website).
Processor :
--- T527, 8-core ARM CortexTM-A55@1.8GHz
--- HIFI4 Audio DSP@600MHz
--- RISC-V@200MHz
--- GPU:G57 MC1
--- VPU:H.265 4K@60fps decoding, H.264 4K@60fps decoding, H.264 4K@25fps encoding
--- NPU:2TOPS
Memory : LPDDR4/4X: 2GB/4GB (optional)
Storage :
--- eMMC module (optional)：16GB/32GB/64GB/128GB (optional)
--- SPI flash：128Mb(default), 256Mb (optional)
--- M.2 M-KEY socket：PCIe2.0 NVMe SSD
--- uSD card slot：supports up to 128GB uSD card
Wi-Fi + Bluetooth :
--- Wi-Fi + Bluetooth 2-in-1 module
--- Wi-Fi 5.0+BT 5.0, BLE
Ethernet : 10/100/1000Mbps Ethernet
Display :
--- 1* HDMI TX 2.0 interface up to 4K@60fps
--- 1* 4-lane MIPI-DSI
--- 1* eDP1.3
Camera :
--- 1* 2-lane MIPI-CSI camera interface
--- 1* 4-lane MIPI-CSI camera interface
USB :
--- 1*USB Type-A 2.0
--- 3*USB Type-A 2.0 HOST
--- 1*USB 2.0 HOST, reserved for customer expansion
ADC : Reserved 4Pin connector, can access 2-lane ADC, maximum input 1.8V
Audio : 3.5mm headphone jack audio input/output
Buttons : 1* BOOT, 1*RESET, 1 *PWR ON
RTC : 2Pin spare battery connector (Pitch=1.27mm)
40Pin : 40Pin function expansion interface, supports the following interface types:
GPIO、UART, I2C, SPI, PWM
Debug : 3Pin debug serial port
Power supply : Type-C 5V 5A DCIN
Supported OS : Ubuntu, Debian, Android13
PCB : 89mm*56mm*1.6mm
Weight : 52g
